| L=2211.36[μH] | Cout=500[μF] | Ton=20.93[μs] | Toff=100[μs] |
| d=0.209[.] | Iin_avg=4.19[A] | Imax=1.99[A] | iripple=4[A] |
| Iprim=118.19[A] | Isec=12[A] | Iin=1.05[A] | Imag=188.38[A] |

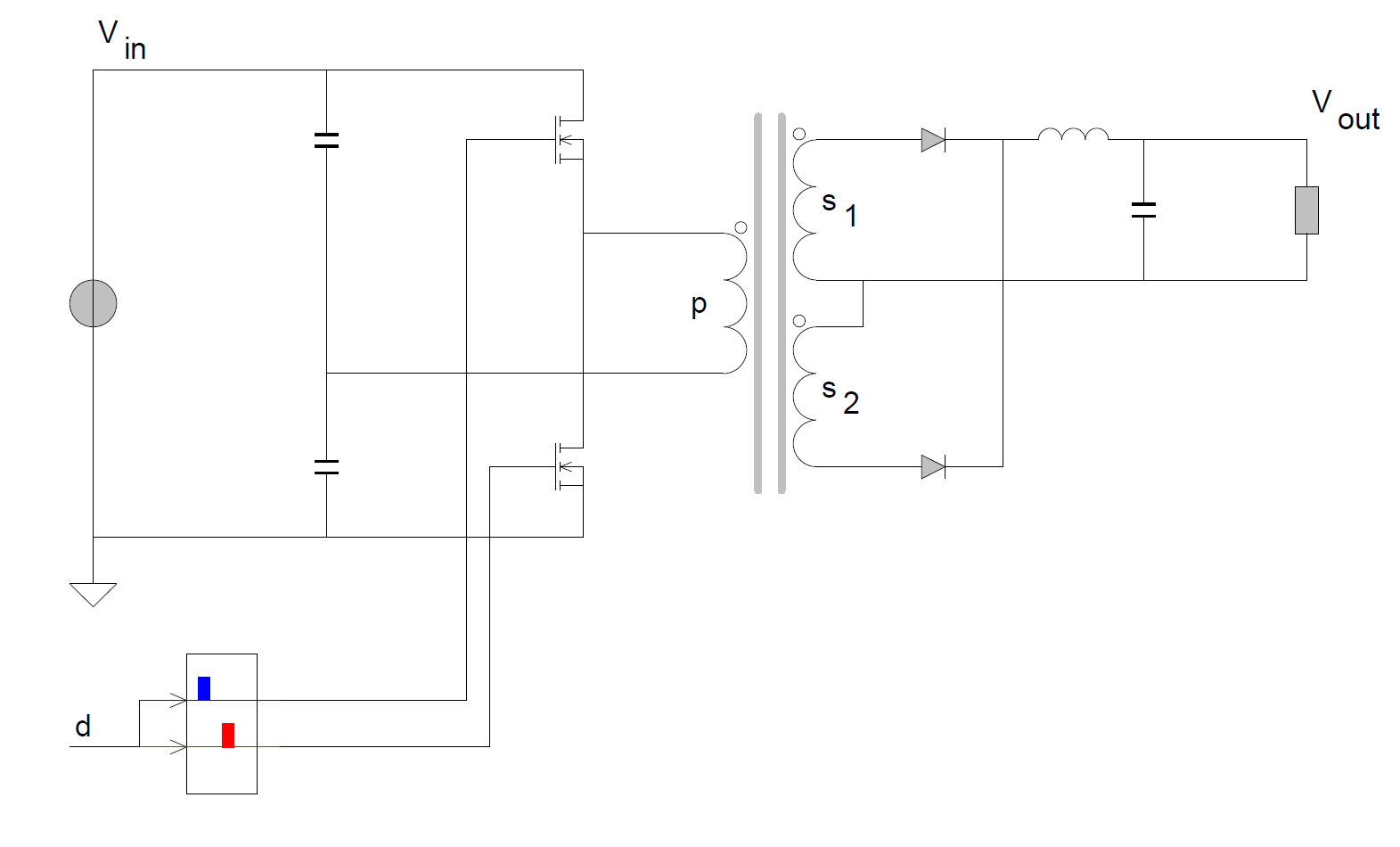

Gate signal for the Mosfet:
Primary winding voltage Np:
Current through the primary inductor:
Secondary winding voltage Ns1:
Secondary winding voltage Ns2:
Voltage across the inductor L
Current through the inductor:
Voltage across the Mosfet Q1
Current through the Mosfet Q1:
Voltage across the Mosfet Q2
Current through the Mosfet Q2:
